LUXIS S52

Interior Lighting
|
Downlight and Spotlight
|
Spotlight
Model Kodu / Code
Ürün Tipi / Product Type
Kurulum Tipi / Installation Type
RS-S-052
Adjustable Spotlight
Flush

Product Technical Specifications

Kurulum Tipi / Installation Type
Koruma Sınıfı / Protection Class
Flush
IP20 / IP44
Işın Açısı / Beam Angle
Kesim Çapı / Cutting Diameter (mm)
23° / 37° / 51°
105 x 190
Dış Çap / Outer Diameter (mm)
Yükseklik / Height (mm)
120 x 240
H90
Gövde Malzeme / Body Material
Gövde Kaplama / Body Finish
Aluminum Injection Molded Body and Heat Sink
Electrostatic Powder Coating
Difüzör / Diffuser
LED Marka / Brand
LED Sürücü / Driver
Tempered (Standard) / Frosted
Samsung / Epistar
Tridonic
Karartma / Dimming
Aksesuarlar / Accessories
Phase Cutoff / 1-10V / DALI
Emergency Kit, 3-Pin Connector, Honeycomb

Product Lighting Data

LED Tipi / Type
3000K (lm)
4000K (lm)
Samsung COB LED
1420
1540
Samsung COB LED
2020
2140
Samsung COB LED
2444
2522
Epistar Cob Led
1580
1672
5000K (lm)
Akım (mA)
Güç (W)
CRI
1660
180
14
>80
2260
250
20
>80
2626
350
26
>80
1760
250
18
>80

Product Dimensions

Model Kodu / Model Code
Kesim Çapı / Cutting Diameter (mm)
RS-S-052
105 x 190
Dış Çap / Outer Diameter (mm)
Yükseklik / Height (mm)
Işın Açısı / Beam Angle
120 x 240
90
23° / 37° / 51°

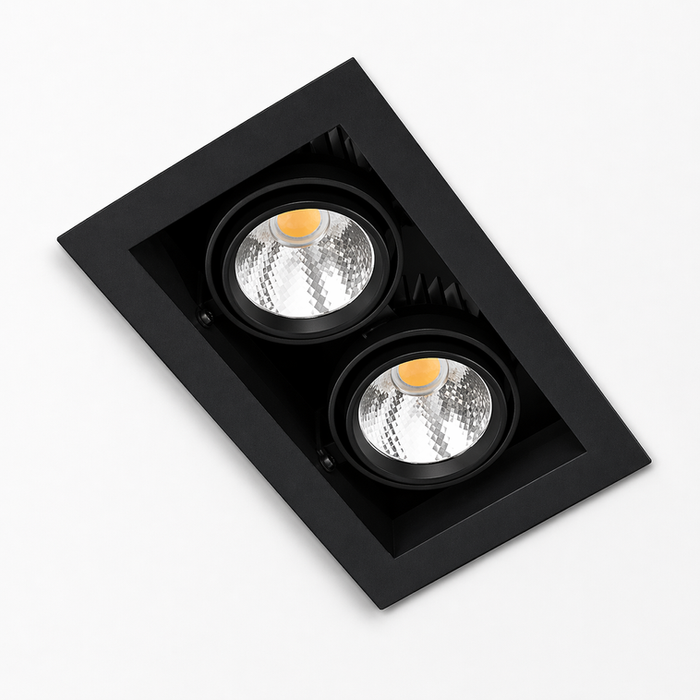

Dual-module square recessed adjustable spotlight with independently adjustable heads. 300° tilt and 360° rotation per module. High-output solution for retail and commercial accent lighting using Samsung and Epistar COB LEDs.

The LUXIS S52 is a dual-module recessed LED spotlight with independently adjustable heads. Suitable for accent lighting in retail and commercial interiors, this model allows for the use of two light modules within the same housing. For users seeking a dual recessed spotlight, the orientation of the heads, mounting dimensions, and beam angle should be considered together. Suitability for product display areas, reception desks, and decorative surfaces can be determined based on the lighting plan. Offered under model code RS-S-052, the LUXIS S52 has a ceiling cutout of 105 × 190 mm, external dimensions of 120 × 240 mm, and a height of 90 mm. The aluminum injection-molded housing and heat sink structure are coated with electrostatic powder paint. The model offers beam angle options of 23°, 37°, and 51°. Samsung COB LED options are available in 14W, 20W, and 26W total power; the Epistar COB LED option is available in 18W total power. At 4000K, Samsung options have luminaires of 1540, 2140, and 2522 lumens respectively, while the Epistar option has a luminaire of 1672 lumens. 3000K and 5000K alternatives are also available. Tridonic drivers and tempered standard or frosted diffuser options are available. Phase cut-off, 1-10V and DALI dimming options, and IP20 and IP44 protection options can be evaluated according to project needs. Emergency kit, honeycomb, and 3-pin connector are among the accessories. When choosing a dual-head ceiling spotlight, the lighting function of each module should be defined beforehand. The placement of the heads can be considered separately to direct light to two different display points in a store or to illuminate different sections of the same product group. A plan can be prepared based on the needs of the counter and back surface in reception areas, and bookshelves and decorative objects in residential areas. The beam angle selection should be related to the size of the target surface and the distance of the luminaire from this surface. When comparing narrower and wider angle alternatives, the area to be reached by the light and the overall lighting level in the surroundings should be considered together. Users' viewing directions, bright surfaces, and potential reflections can also be included in the placement decision. Choosing a color temperature that is compatible with other light sources supports the integrity of the space. In suspended ceiling dual spot applications, the rectangular opening, body height, and the necessary clearance for the driver should be checked. In projects where dimming will be used, the compatibility of the driver and control system should be determined. For users seeking dual-module COB spot or store accent lighting, the LUXIS S52 can be preferred by matching its technical options to project requirements.
