REFLECTO ROUND S3
Interior Lighting
|
Downlight and Spotlight
|
Spotlight
Model Kodu / Code | Ürün Tipi / Product Type | Kurulum Tipi / Installation Type |
|---|---|---|
RS-S-003 | Surface-mounted spotlights | Surface Mounted / Pendant Light |
Product Technical Specifications
Kurulum Tipi / Installation Type | Koruma Sınıfı / Protection Class |
|---|---|
Surface Mounted / Pendant Light | IP20 |
Işın Açısı / Beam Angle | Kesim Çapı / Cutting Diameter (mm) |
|---|---|
19° / 40° | Ø80 |
Dış Çap / Outer Diameter (mm) | Yükseklik / Height (mm) |
|---|---|
Ø85 | H110 |
Gövde Malzeme / Body Material | Gövde Kaplama / Body Finish |
|---|---|
Aluminum Extrusion Body | Electrostatic Powder Coating |
Difüzör / Diffuser | LED Marka / Brand | LED Sürücü / Driver |
|---|---|---|
Chrome / Copper / Gold / Platinum / Black | Samsung / Epistar | Tridonic |
Karartma / Dimming | Aksesuarlar / Accessories |
|---|---|
Phase Cutoff / 1-10V / DALI | Emergency Kit, Microprism Diffuser, Fire Resistant Diffuser, 3-Pin Connector |
Product Lighting Data
LED Tipi / Type | 3000K (lm) | 4000K (lm) |
|---|---|---|
Samsung COB LED | 1010 | 1070 |
Epistar Cob Led | 790 | 836 |
5000K (lm) | Akım (mA) | Güç (W) | CRI |
|---|---|---|---|
1130 | 250 | 10 | >80 |
880 | 250 | 9 | >80 |
Product Dimensions
Model Kodu / Model Code | Kesim Çapı / Cutting Diameter (mm) |
|---|---|
RS-S-003 | 80 |
Dış Çap / Outer Diameter (mm) | Yükseklik / Height (mm) | Işın Açısı / Beam Angle |
|---|---|---|
85 | 110 | 19° / 40° |
Large format cylindrical surface-mounted or pendant spotlight with decorative metallic reflector. Customizable height aluminum extrusion housing. Compatible with Samsung and Epistar COB LEDs with two beam angles. Ideal for commercial applications with high ceilings.

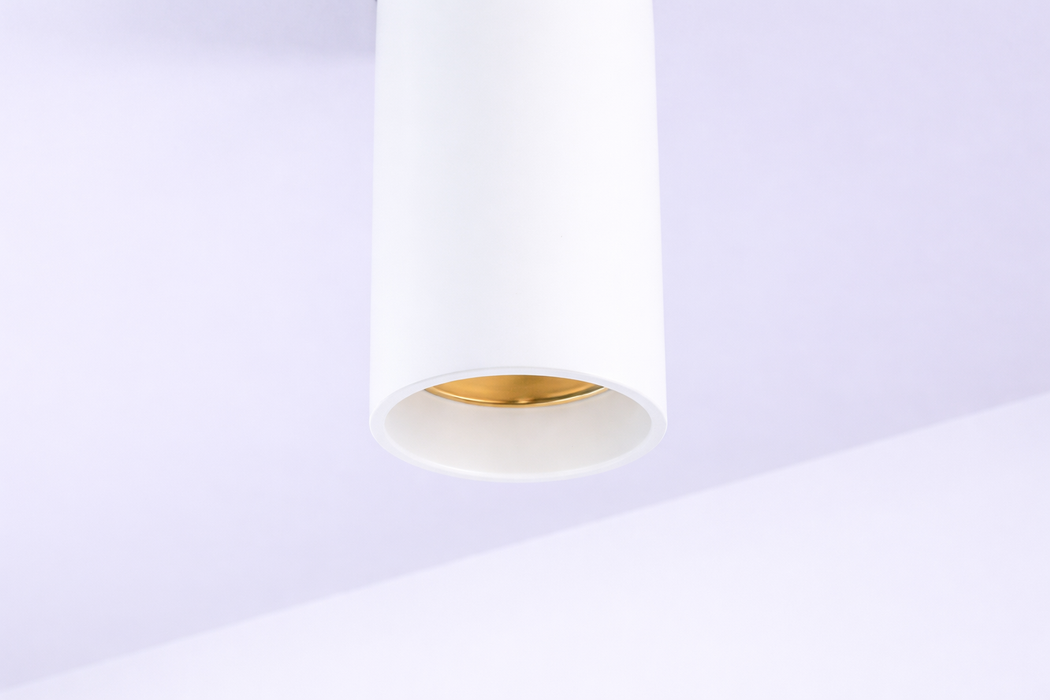

REFLECTO ROUND S3 is a cylindrical LED spotlight fixture with decorative metallic reflector options. Surface and pendant mounting alternatives offer different placement possibilities in projects where lighting is used as a visible element in space design. This cylindrical LED ceiling spotlight is a model that can be considered by users looking for decorative surface-mounted and pendant spotlight lighting. Chrome, copper, gold, platinum, and black reflector options allow the fixture to be selected to match furniture and other metal details. The product, with model code RS-S-003, has an outer diameter of 85 mm and a body height of 110 mm. The aluminum extrusion body uses electrostatic powder coating. The model, with IP20 protection class, offers 19° and 40° beam angle alternatives. The Samsung COB LED option is listed as 10 W, and the Epistar COB LED option as 9 W. With a color temperature of 4000 K, the Samsung option has a luminous flux of 1070 lumens, while the Epistar option has 836 lumens. 3000K and 5000K options are also available; color rendering index (CRI) is specified as >80. Phase cut-off, 1–10V, and DALI dimming options are available with the Tridonic driver. When planning interior spot lighting, the location of the light should be determined as much as the appearance of the luminaire. Different light placements may be required for a display table, decorative niche, or console in the entrance area. The relationship of the spotlights, which complement the general lighting, to the target surface affects the balance of light and shadow in the space. Therefore, the number of luminaires, ceiling height, and other surrounding light sources should be considered together. A narrow-angle option may be considered for focusing on a specific detail, while a wider angle can help spread the light over a larger area. Since the size of the illuminated surface changes as the application distance changes, the selection should not be based solely on wattage. Luminous flux, color temperature, and the reflectivity of the surfaces are also part of the lighting plan. In pendant lighting, the mounting height affects both the appearance of the luminaire in the space and the distribution of light on the target surface. For surface-mounted applications, electrical connections and ceiling placement axes must be planned in advance. If more than one spotlight is used in the same space, choosing a common color temperature can support visual consistency. When dimming is preferred, the compatibility of the driver and control device should be checked. REFLECTO ROUND S3 can be used in a decorative lighting arrangement suitable for the intended use of the interior space by selecting the mounting method, reflector color, and light angle together.
