REFLECTO SQUARE S12
Interior Lighting
|
Downlight and Spotlight
|
Spotlight
Model Kodu / Code | Ürün Tipi / Product Type | Kurulum Tipi / Installation Type |
|---|---|---|
RS-S-012 | Surface-mounted spotlights | Surface-mounted or pendant |
Product Technical Specifications
Kurulum Tipi / Installation Type | Koruma Sınıfı / Protection Class |
|---|---|
Surface-mounted or pendant | IP20 |
Işın Açısı / Beam Angle | Kesim Çapı / Cutting Diameter (mm) |
|---|---|
36° | Not required |
Dış Çap / Outer Diameter (mm) | Yükseklik / Height (mm) |
|---|---|
Ø55 | H110 |
Gövde Malzeme / Body Material | Gövde Kaplama / Body Finish |
|---|---|
DKP Metal Body | Electrostatic Powder Coating |
Difüzör / Diffuser | LED Marka / Brand | LED Sürücü / Driver |
|---|---|---|
Chrome / Copper / Gold / Platinum / Black | Not included (GU-10 replaceable lamp) | Not required (GU-10 direct supply) |
Karartma / Dimming | Aksesuarlar / Accessories |
|---|---|
Connected to GU-10 lamp (On/Off/Phase Cut/Smart GU-10 optional) | Emergency Kit (1-3 hours), 3-Pin Connector, GU10 Socket |
Product Lighting Data
LED Tipi / Type | 3000K (lm) | 4000K (lm) |
|---|---|---|
GU-10 (lamp not included) | - | - |
5000K (lm) | Akım (mA) | Güç (W) | CRI |
|---|---|---|---|
- | - | - | - |

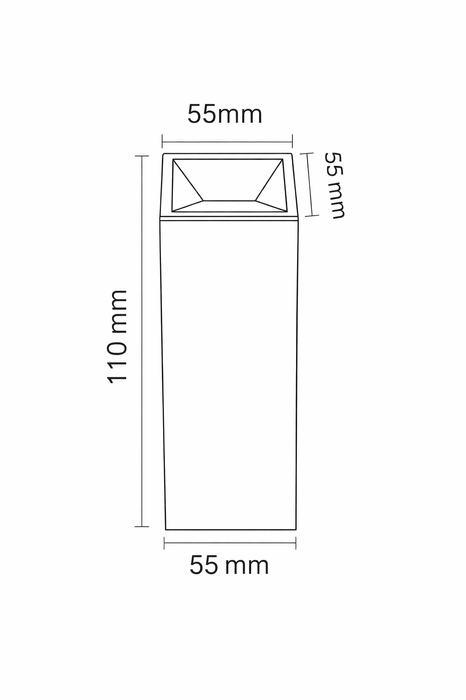

Product Dimensions
Model Kodu / Model Code | Kesim Çapı / Cutting Diameter (mm) |
|---|---|
RS-S-012 | Not required |
Dış Çap / Outer Diameter (mm) | Yükseklik / Height (mm) | Işın Açısı / Beam Angle |
|---|---|---|
55 | 110 | 36° |
Square surface-mounted or pendant GU-10 spotlight with metallic reflector. DKP metal housing with customizable mounting height. Lamp/light source is not included and must be ordered separately. Suitable for contemporary residential and boutique shop interiors.
REFLECTO SQUARE S12 is a GU10 socket spotlight with a square body design and metallic reflector options, suitable for surface-mounted or pendant installation. Ideal for residential and boutique interiors, this model offers a choice for users seeking a square surface-mounted spotlight, a GU10 ceiling spotlight, and a decorative pendant spotlight. Chrome, copper, gold, platinum, and black reflector options allow for selection that complements metal accessories and furniture details in the space. The square form can be incorporated as part of the ceiling design in interior spaces where geometric lines are prominent. The product, with model code RS-S-012, has a body height of 110 mm. Its DKP metal body features electrostatic powder coating. With an IP20 protection rating, the technical specifications state a light angle of 36°. Designed for surface-mounted and pendant applications, it does not require a ceiling cutout for recessed mounting. The GU10 lamp is not included and must be ordered separately. In GU10 lamps, which do not require a separate LED driver, wattage, lumens, color temperature, and color rendering index values depend on the selected lamp. Phase-cut dimming or intelligent control usage is also determined by the appropriate GU10 lamp choice. When planning interior spot lighting, the placement of the luminaires and the intended use of the surfaces to be illuminated should be considered together. In a residence, different lighting arrangements may be needed for consoles, bookshelves, or decorative corners. In boutique stores, shelves, display tables, and circulation areas may create separate lighting needs. Planning the spotlights together with the general lighting helps to identify the areas that need to be highlighted. In pendant lighting, the mounting height affects the appearance of the luminaire and the distribution of light on the target surface. User movement areas and lines of sight should also be included in the placement decision. In surface-mounted applications, electrical connection points, furniture axes, and other elements on the ceiling need to be evaluated together. When choosing a GU10 LED lamp, comparing only the power rating is not sufficient. Luminous flux, light angle, color temperature, and dimming compatibility should also be examined. If multiple spotlights are used in the same space, determining the specifications of the lamps together can create a more consistent look in terms of light color and brightness. The choice of reflector color can also be correlated with the material palette of the space. REFLECTO SQUARE S12 can be used in decorative and functional interior lighting arrangements by determining the mounting method, reflector option, and compatible GU10 lamp together.
