NEPTUNE S47
Interior Lighting
|
Downlight and Spotlight
|
Spotlight
Model Kodu / Code | Ürün Tipi / Product Type | Kurulum Tipi / Installation Type |
|---|---|---|
RS-S-047 | Spot | Flush |
Product Technical Specifications
Kurulum Tipi / Installation Type | Koruma Sınıfı / Protection Class |
|---|---|
Flush | IP20 / IP44 |
Işın Açısı / Beam Angle | Kesim Çapı / Cutting Diameter (mm) |
|---|---|
25° / 47° | Ø85 x 2 |
Dış Çap / Outer Diameter (mm) | Yükseklik / Height (mm) |
|---|---|
95 x 192 | H85 |
Gövde Malzeme / Body Material | Gövde Kaplama / Body Finish |
|---|---|
Aluminum Injection Molded Body and Heat Sink | Electrostatic Powder Coating |
Difüzör / Diffuser | LED Marka / Brand | LED Sürücü / Driver |
|---|---|---|
Tempered (Standard) / Frosted | Samsung / Epistar | Tridonic |
Karartma / Dimming | Aksesuarlar / Accessories |
|---|---|
Phase Cutoff / 1-10V / DALI | Emergency Kit, 3-Pin Connector |
Product Lighting Data
LED Tipi / Type | 3000K (lm) | 4000K (lm) |
|---|---|---|
Samsung COB LED | 1420 | 1540 |
Samsung COB LED | 2020 | 2140 |
Samsung COB LED | 2444 | 2522 |
Epistar Cob Led | 1580 | 1672 |
5000K (lm) | Akım (mA) | Güç (W) | CRI |
|---|---|---|---|
1660 | 180 | 14 | >80 |
2260 | 250 | 20 | >80 |
2626 | 350 | 26 | >80 |
1760 | 250 | 18 | >80 |

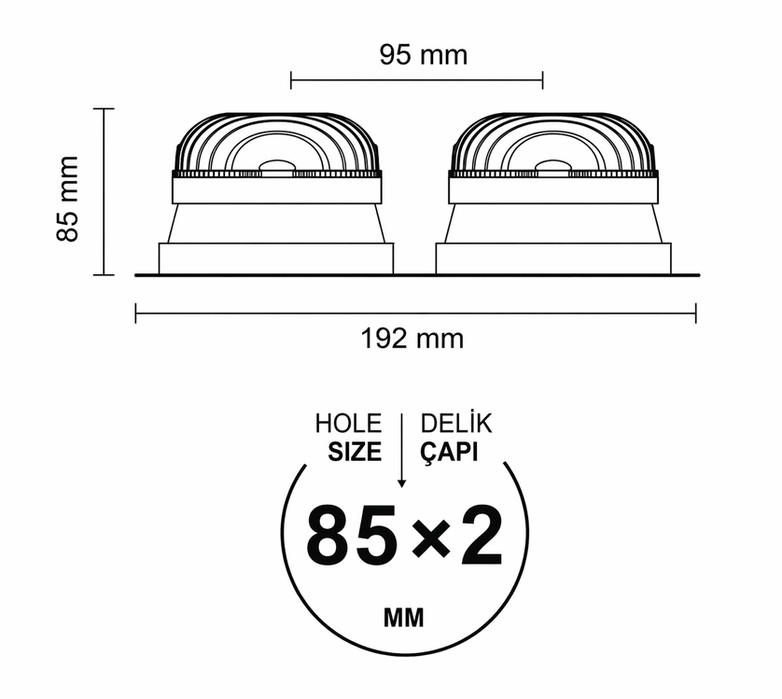

Product Dimensions
Model Kodu / Model Code | Kesim Çapı / Cutting Diameter (mm) |
|---|---|
RS-S-047 | Ø85 x 2 |
Dış Çap / Outer Diameter (mm) | Yükseklik / Height (mm) | Işın Açısı / Beam Angle |
|---|---|---|
95 x 192 | 85 | 25° / 47° |
Dual-module recessed fixed spotlight with two independently adjustable heads in a single housing. Doubles the light output of the Neptun S46 for wider illumination coverage. Suitable for retail, hospitality and commercial accent lighting.
NEPTUN S47 is a dual-module recessed LED spotlight that combines two light modules in a single housing. It can be used in accent lighting projects for shops, hotels, and commercial interiors. For users looking for a dual recessed spotlight, the product's light options, mounting dimensions, and suitability for the area to be illuminated are important selection factors. Suitability for shelves, product display areas, and reception areas should be determined based on the required light level and ceiling placement. The NEPTUN S47, offered with model code RS-S-047, has dimensions of Ø85 × 2 mm, external dimensions of 95 × 192 mm, and a height of 85 mm as specified on the product page. The aluminum injection-molded housing and heat sink structure are coated with electrostatic powder paint. The model offers 25° and 47° beam angle options. Samsung COB LED alternatives are available in 14 W, 20 W, and 26 W total power; the Epistar COB LED alternative is available in 18 W total power. At 4000K, Samsung options have luminaires of 1540, 2140, and 2522 lumens respectively, while the Epistar option has a luminaire of 1672 lumens. 3000K and 5000K alternatives are also available. Tridonic drivers and tempered standard or frosted diffuser options are available. Phase cut-off, 1-10V and DALI dimming options, and IP20 and IP44 protection options can be evaluated according to project needs. An emergency kit and a 3-pin connector are among the accessories. In projects using dual-module ceiling spotlights, the function of each light point must be defined in advance. In a store, a lighting plan can be prepared for different sections of the same display arrangement or for product groups located side-by-side. In hotel entrances, the reception desk and surrounding areas can be considered together with general lighting. This clarifies the relationship between accent lighting and other light sources in the space. The beam angle selection should be related to the size of the target surface and the distance of the luminaire from this surface. When comparing narrow and medium-angle alternatives, both the amount of light and the area it will reach should be considered. Users' viewing directions, bright surfaces, and potential reflections can be taken into account in the placement decision. Choosing a color temperature that is compatible with other luminaires supports the integrity of the decoration. In suspended ceiling dual spot applications, the cut-out layout should be compared with the technical drawing, and the necessary clearance for the housing and driver should be checked. In projects where dimming will be used, the compatibility of the driver and control system should be determined. For users seeking dual-module COB spot or commercial interior accent lighting, the NEPTUN S47 can be preferred by matching its technical options with project requirements.
