REFLECTO SQUARE S13

Interior Lighting
|
Downlight and Spotlight
|
Spotlight
Model Kodu / Code
Ürün Tipi / Product Type
Kurulum Tipi / Installation Type
RS-S-013
Surface-mounted square spotlight
Surface Mounted / Pendant Light

Product Technical Specifications

Kurulum Tipi / Installation Type
Koruma Sınıfı / Protection Class
Surface Mounted / Pendant Light
IP20
Işın Açısı / Beam Angle
Kesim Çapı / Cutting Diameter (mm)
19° / 40°
Ø80
Dış Çap / Outer Diameter (mm)
Yükseklik / Height (mm)
55 x 55
H110
Gövde Malzeme / Body Material
Gövde Kaplama / Body Finish
DKP Metal Body and Aluminum Heat Sink
Electrostatic Powder Coating
Difüzör / Diffuser
LED Marka / Brand
LED Sürücü / Driver
Chrome / Copper / Gold / Platinum / Black
Samsung / Epistar
Tridonic
Karartma / Dimming
Aksesuarlar / Accessories
Phase Cutoff / 1-10V / DALI
Emergency Kit, Microprism Diffuser, Fire Resistant Diffuser, 3-Pin Connector

Product Lighting Data

LED Tipi / Type
3000K (lm)
4000K (lm)
Samsung COB LED
1010
1070
Epistar Cob Led
790
836
5000K (lm)
Akım (mA)
Güç (W)
CRI
1130
250
10
>80
880
250
9
>80

Product Dimensions

Model Kodu / Model Code
Kesim Çapı / Cutting Diameter (mm)
RS-S-013
80
Dış Çap / Outer Diameter (mm)
Yükseklik / Height (mm)
Işın Açısı / Beam Angle
55 x 55
110
19° / 40°

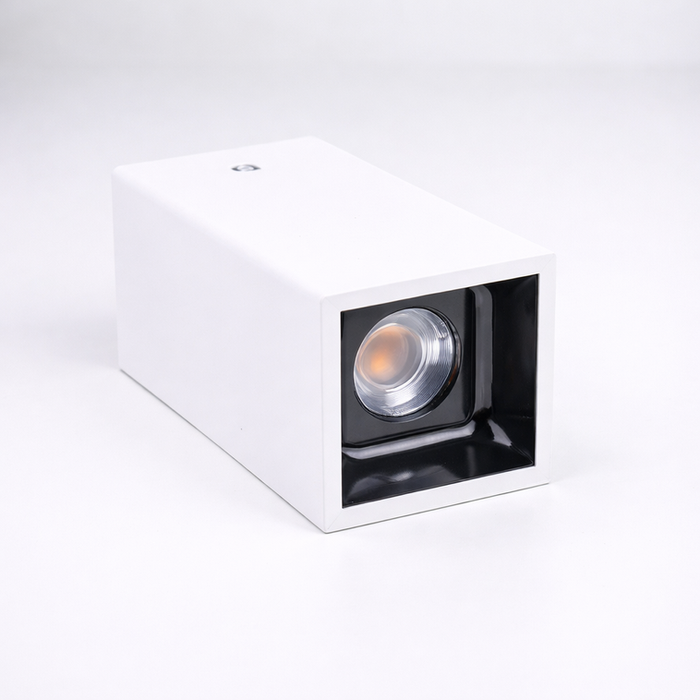

Compact square surface-mounted or pendant spotlight with decorative metallic reflector and adjustable height. DKP metal housing with aluminum heat sink. Compatible with Samsung and Epistar COB LEDs. Suitable for residential and boutique store accent lighting.

REFLECTO SQUARE S13 is a surface-mounted or pendant LED spotlight with a compact square body and metallic reflector options. It can be used for accent lighting in residential and boutique store projects. The square LED ceiling spotlight offers various mounting alternatives for users seeking decorative surface-mounted spotlights and square pendant lighting. Chrome, copper, gold, platinum, and black reflector options allow the product to be selected to match furniture accessories and other metal details in the space. The product, with model code RS-S-013, has external dimensions of 55 × 55 mm and a body height of 110 mm. The DKP metal body is designed with an aluminum heat sink and finished with electrostatic powder coating. The model, with IP20 protection class, offers 19° and 40° beam angle options. The Samsung COB LED alternative is listed as 10 W, and the Epistar COB LED alternative as 9 W. The Samsung option has a luminous flux of 1070 lumens at a color temperature of 4000 K, while the Epistar option has 836 lumens. 3000K and 5000K options are also available; CRI value is specified as >80. Phase-cutting with Tridonic driver, 1–10V and DALI dimming options are available. When planning square spot lighting, the geometry of the luminaire, ceiling layout, and furniture placement should be considered together. Different placement decisions may be required to create light on a console, display table, or decorative corner. Single use highlights a specific point, while sequential or grouped placements can be considered to define different parts of the space. The distance between luminaires should be determined according to the dimensions of the target surfaces and the application height. A narrow light angle can be considered to focus on a specific detail. A wider angle can help spread the light over a larger surface. When determining the appropriate option, luminous flux, application distance, and other surrounding lighting should be considered together. Reflections on bright surfaces and shadows created by objects are also part of the lighting placement. In pendant applications, the mounting height affects the appearance of the luminaire and the distribution of light on the target surface. In surface-mounted applications, the suitability of the electrical connection points to the ceiling plan should be checked. Choosing the color temperatures of luminaires used in the same space together can support visual harmony. If dimming is preferred, the compatibility of the driver and control infrastructure should be determined. REFLECTO SQUARE S13 can be used in a spot lighting arrangement suitable for the decorative approach of the interior space by considering the mounting method, reflector color and LED option together.
